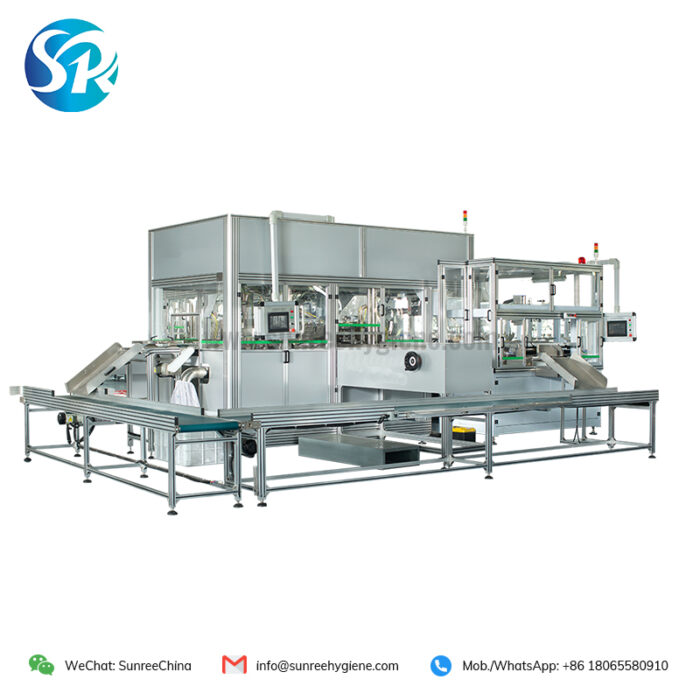

Full Automatic Adult Baby Diaper Pull-ups Pants Underpads Packaging Machine

Additional information

Working Speed

40~50bags/min

Packaging Specifications

Width: 120~400 (customizable)
Height: 90~250 (customizable)
Length: 150~500 (customizable)

Materials of Bags

Suitable for heat-sealable materials, such as PE, nonwoven material

Electrical System

Motion controlled system, touch screen, servo drive (11axles)

Power Supply

25KW, 380V, 50/60HZ

Air Pressure

0.5Mpa

Machine Weight

2000kg

Machine Dimension (L×W×H)

3550×3500×2540mm

Share this:

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on email

Full Automatic Adult Baby Diaper Pull-ups Pants Underpads Packaging Machine

Product Details:

Innovative Gusset-folding Technology with Exclusive Patent

With the accuracy to ensure the shaping up of smooth and delicate gusset, the servo-controlled angular device is adaptable to various packaging specifications.

Multi Servo Drive and High Stability

The adoption of Mitsubishi or AB motion-controlled PLC and Bus servo system ensures the stability and efficiency of production, with the qualified rate reaching as high as 99%.

Overall Program Planning.

When the machine is in the process of changing the task or in a malfunctioning state, it can click the switch to output diapers from another outlet of the stacker, the products will be diverted through the manual sealing line to ensure the continuous work of the main machine.

Extensive Applicability, with Fine and Firm Sealing

The machine is applicable to packing over 95% of the mainstream products in this line, including diapers, diaper pants, underpads, etc.

Shortest Packaging Length Requirement

Unique production technology adopted, with short packaging length requirement to reduce the cost of production.

Human-machine Interaction System

Various product parameters can be preserved and saved in the machine and retrieved easily when needed.

Temperature Control System from Germany

The adoption of German temperature control system enables the preciseness of temperature setting for heating strips by touching on the screen, with a tolerance of ±1℃
